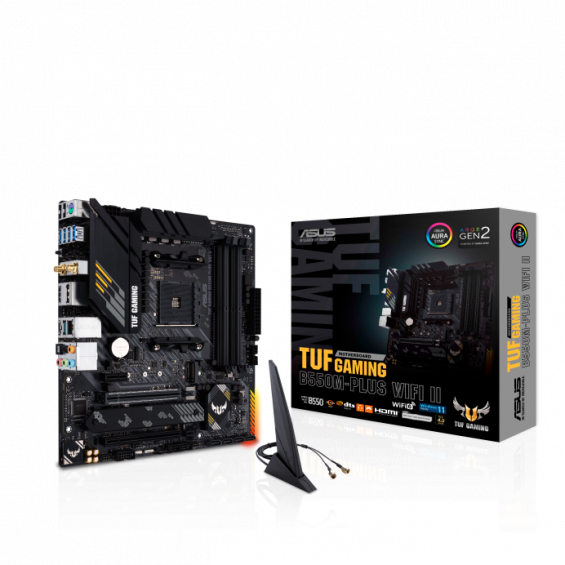

Asus Placa Base TUF Gaming B550M-Plus WiFi II mATX AM4 (90MB19Y0-M0EAY0)
- Fabricante: ASUS P/N: 90MB19Y0-M0EAY0 Código: 1397708
158, 06 €
(Impuesto incl.) Placa base de gaming micro-ATX AMD B550 (Ryzen AM4) con PCIe 4.0, Dos M.2, 10 etapas de alimentación DrMOS, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen. 2 de tipo A y tipo C e iluminación Aura Sync RGB
- Zócalo AMD AM4: Compatible con los procesadores AMD Ryzen™ de las series 5000, 5000 G, 4000 G y 3000.
- Alimentación mejorada: 8+2 etapas de potencia, toma ProCool, componentes TUF y Digi+ VRM para una vida útil más larga.
- Refrigeración completa: Disipadores VRM, PCH y M.2, conectores de ventilación híbrida y Fan Xpert 2+.
- Conectividad de próxima generación: M.2 PCIe 4.0, USB 3.2 Gen. 2 de tipo A tipo C.
- Diseñada para gaming online: Wi-Fi 6, Realtek 2.5 Gb Ethernet y TUF LANGuard.
- Cancelación de ruido bidireccional con IA: Reduce el ruido de fondo del micrófono y la salida de audio para que te comuniques con claridad mientras juegas y participas en videoconferencias.
| CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to www.asus.com for CPU support list. |
| Chipset | B550 |
| Memoria | Canales de memoria:4DDR4 (doble canal) Tamaño de memoria máximo:128GB 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory* Dual Channel Memory Architecture * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Gráficos | 1 x DisplayPort** 1 x HDMI®port*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.2. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Ranuras de expansión | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)* AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slot** * Support PCIe bifurcation for RAID on CPU function. ** PCIEX16_2 will run x2 mode when PCIEX1 slot is used. |
| Almacenamiento | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
| Ethernet | TUF LANGuard |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 |
| USB | USB trasero:8 puertos en total 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) USB frontal:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
Puertos de E/S del panel posterior | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| Conectores de E/S internos | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
Características especiales | ASUS TUF PROTECTION - DIGI+ VRM (Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 header |
Funciones de software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manejabilidad | WOL by PME, PXE |
| Accesorios | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Sistema operativo | Windows 10 64bit Windows® 11 ready Windows® 10 64-bit |
| Factor de forma | microATX 24.4cm x 24.4cm |
-/-
